CNC drilling and milling machine with tool magazine (6 tools)

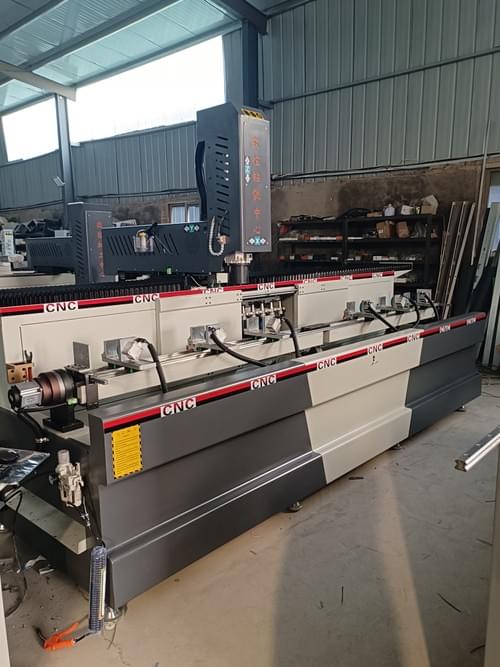

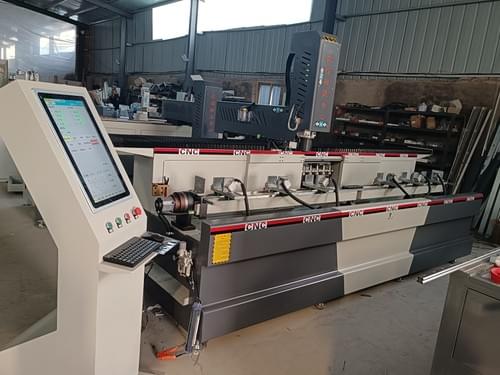

LSKX4-3200A Automatic Tool Change CNC Milling Center
- The system uses Qinglan control system, pure servo drive, supports processing of minimalist narrow-edge glass doors: CNC drilling and milling machine automatically changes tools to mill various lock holes, slots, and drill holes.
- Worktable movement mode,可以实现内外90°、水平180°三面自动翻转 (Can achieve automatic flipping of internal/external 90° and horizontal 180° on three sides); suitable for door lock processing and outward-opening sash processing!
- Uses high-quality variable frequency high-speed spindle motor, ensuring machining stability, stable rotation, low noise, and strong cutting ability; has program saving function, supports specific language input, easy and fast to use; workpiece fixture is movable left and right.
- Suitable for milling, drilling, and other processing of aluminum alloy profiles, industrial aluminum materials, and other light alloys, as well as V-PVC profiles.
- High-strength aluminum alloy worktable,采用高精度直线方导轨、滚珠丝杆 (Uses high-precision linear square guides, ball screws), ensuring smooth operation with high positioning and machining accuracy.
(1) Technical Parameters:
Name | Value | Name | Value |
Input Voltage | 380V 50HZ | Working Air Pressure | 0.6-0.8 MPA |
Total Power | 12 KW | Air Consumption | 100 L/min |
Milling Cutter Speed | 0-18000 r/min | Spindle Power | 9 KW |
X-axis Travel | 3000 MM | X-axis Speed | 0-10 M/min |
Y-axis Travel | 380 MM | Y-axis Speed | 0-10 M/min |
Z-axis Travel | 270 MM | Z-axis Speed | 0-10 M/min |
Overall Dimensions | 3500 * 1700 * 1920 (L/W/H) |
|
|
(2) Configuration Details
Name | Brand/Origin | 3200A Servo (Standard Version) |
Control System | Qinglan | √ |
Touch Screen | 21.5" | 21.5 inch |
Touch Screen Mounting | External/Internal | External |
Relay | Integrated/Shanghai | √ |
Solenoid Valve | Yuanmei/Zhejiang | √ |
Proximity Sensor | Miboo/Taiwan | √ |
Servo Drive Motor | Qinglan | √ |
Servo Driver | Qinglan | √ |
Switching Power Supply | Miboo/Taiwan |
|
Low-voltage Apparatus | Chint | √ |
Cable | Shielded | √ |
Spindle Motor | HWD | 9KW |
Inverter | Hongke/Zhejiang | √ |
Cylinder | Shandong Baidi | √ |
Guide Rail | Domestic | √ |
Ball Screw | 2510-2505 | √ |
X-axis Connection | Rack | √ |
Dust Cover | PVC Snap-on | √ |
Cooling System | Mist |
|
Lubrication Device | Oil Pump | √ |
Bed/Sheet Metal | Fully Galvanized/Powder Coated | √ |
Machine Head | Cast Integral | √ |
Rotary Table | Industrial Aluminum Profile | √ |
Warranty Period 1 Year | Whole Machine | √ |
Equipment Dimensions | L/W/H | 3500 * 1700 * 1920 |
Machining Range | Positive 90 degrees | Internal 120 * 100 |
Machining Range | Negative 90 degrees | External 120 * 100 |
Machining Range | Zero degrees | 0 Face 120 * 100 |
