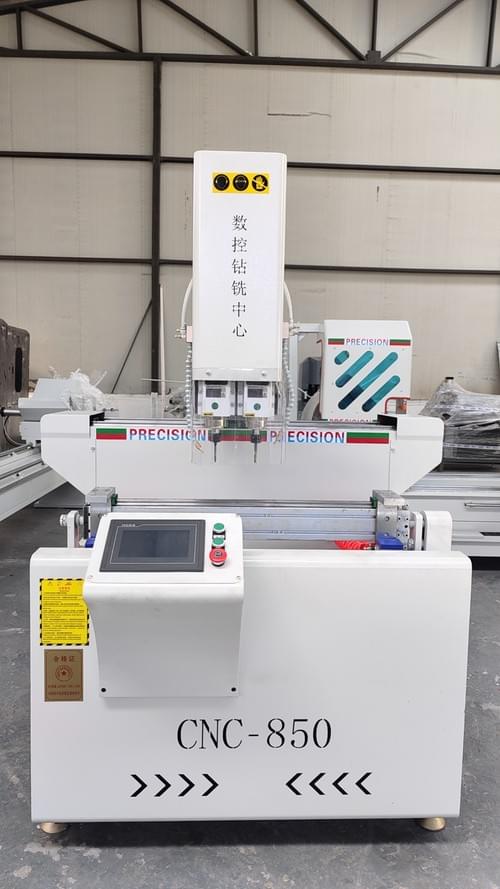

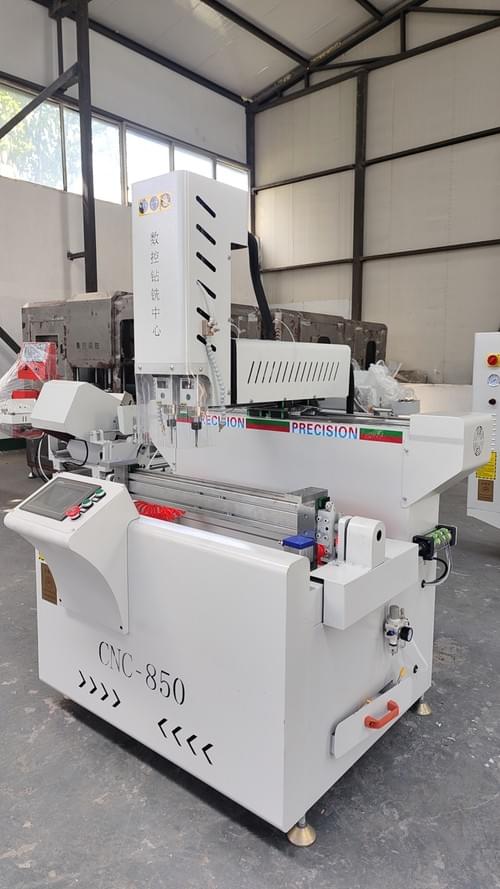

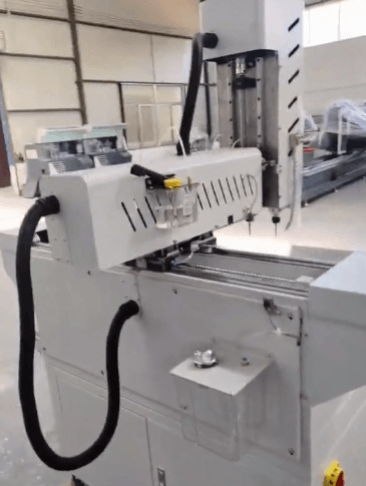

cnc 850 drilling and milling machine with 2 bits
It is suitable for milling various types of holes and grooves of aluminum alloy profiles.
The use of high-precision linear guide, ball screw, gear ball rack and imported servo motor, to ensure smooth movement, with high machining accuracy.
The worktable can be turned over, and the drilling and milling work of 3 surfaces can be completed by clamping at one time.
Imported high-speed electric spindle, stable rotation, low noise, strong cutting ability.
Equipment parameters:
Input power | 380V 50HZ | Power | 2.2KW |
Working air pressure | 0.5-0.8MPa | Overall dimension | 1200X1300X1600mm |
Z-axis travel | 380mm | X-axis travel | 850mm |
Y-axis travel | 200mm | Weight | 350KG |
Shandong Tongxiang Machinery Technology Co Ltd located in Jinan city Shandong province. With over 20 years experience in Doors and WIndows processing machinery manufacturing. We export globally.
Welcome to contact us:
Phone and WhatsAPp: +86 138 6402 9985
